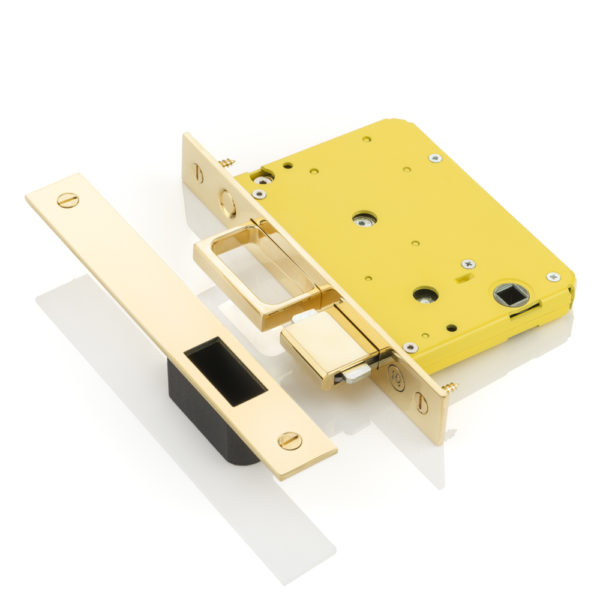

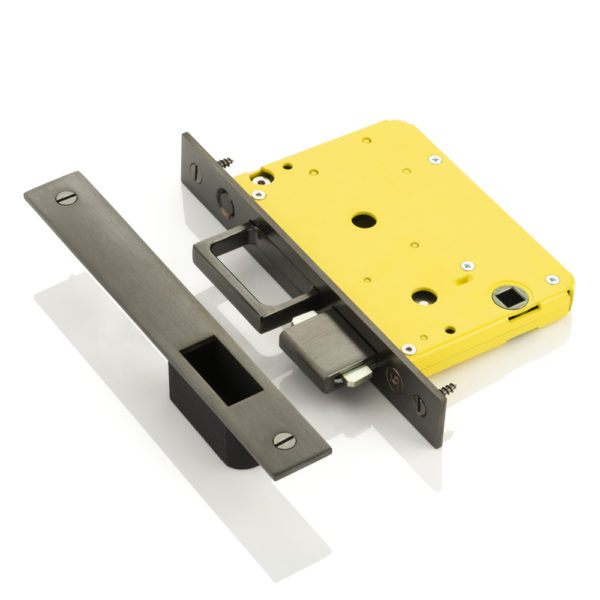

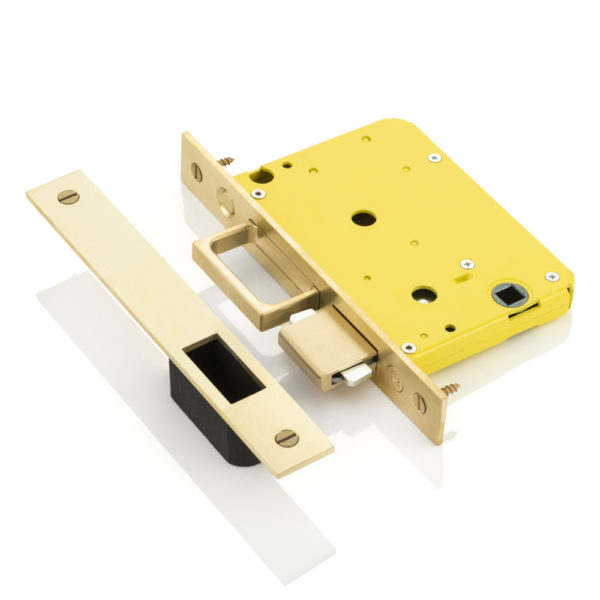

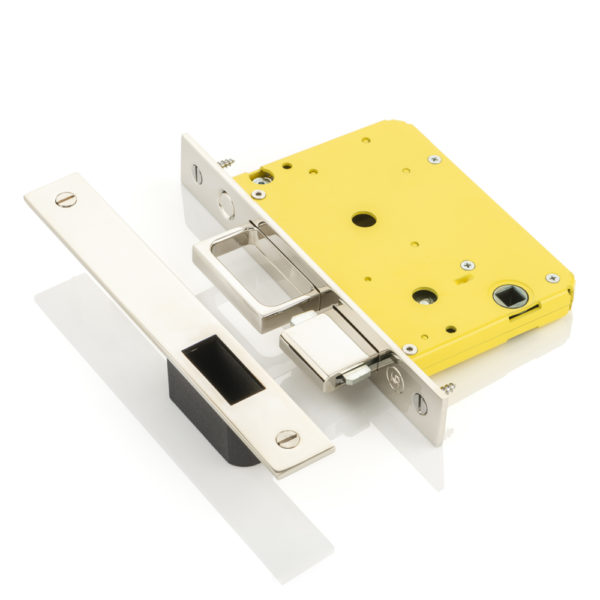

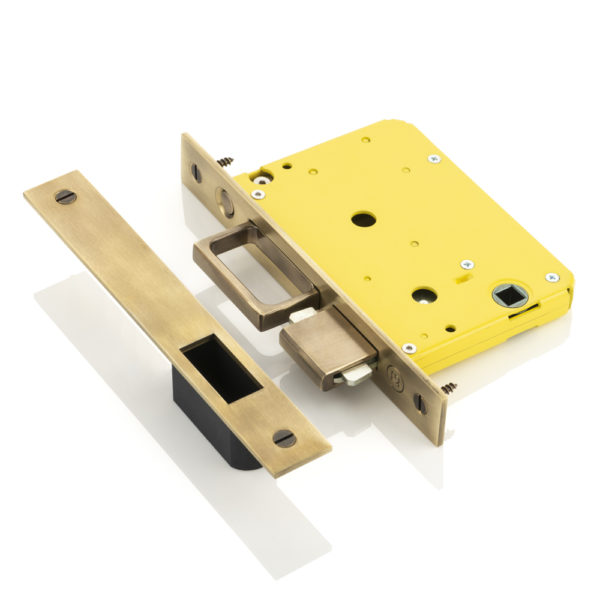

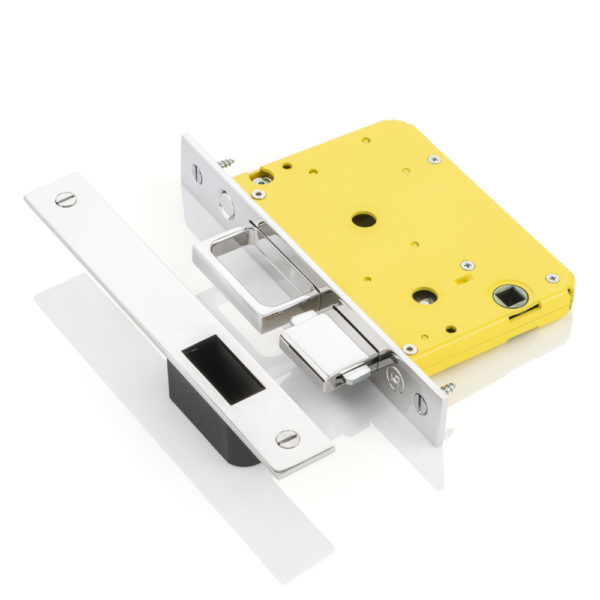

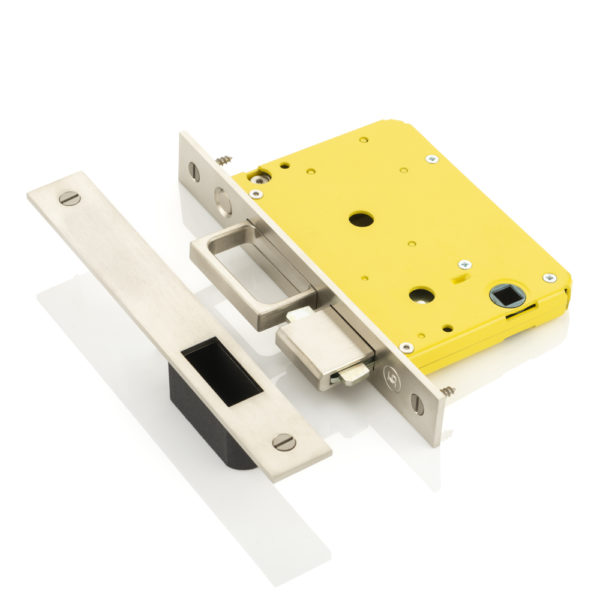

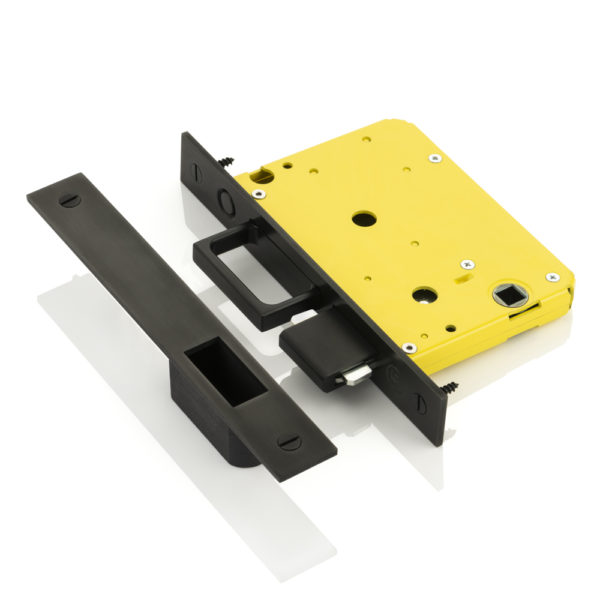

Joseph Giles - YELLOW PULL & LOCK pocket sliding door end pull with privacy hook lock

Model code: LA1163

The absolute essence of top-quality British engineering, every internal component and cog in this Yellow-Lock hook lock is engineered from the highest quality steel and brass to the tightest of tolerances.

Each lock is carefully hand-assembled to ensure the inner workings dovetail together perfectly and provide a seamless operating experience.

This innovative sliding door look is recessed into the door and the deadbolt is operated by a privacy snib from the inside and emergency release from the outside. Once the snib turn is operated, the deadbolt extends and two metal plates protrude (north and south) from the deadbolt, locking into the strike plate.

The LA1163 also incorporates a handle that enables the door to be pulled out of the pocket, when the button is pressed the handle pops out.

These locks are usually installed on doors that lead into a cloakroom, bathroom or WC. The privacy snib and emergency release will need to be compatible with a 5mm square spindle. The minimum door thickness for these locks is 44mm and the maximum, as standard, is 54mm. These locks are not compatible with rebate kits.

Privacy snibs and emergency releases are not supplied with this item, they are sold separately.

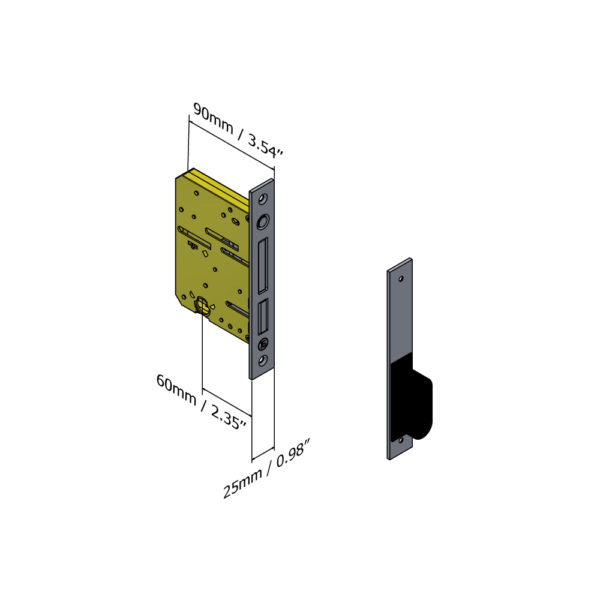

For up-to-date Dimensions & Technical Help Sheets on this item please visit the Joseph Giles UK website product page josephgiles.com/product/LA1163. You will need to create an account to login. Alternatively, contact our helpful sales consultants for assistance.

Select Model & Finish for RRP (inc. GST)
  1. Select Option

    Select Option

    Done
  2. Model, Finish & RRP (incl. GST)

    Select Finish

      Done

    Added to your list

    View My List Continue browsing
    Product documentation

    Select Documents to Download

    Finishes Available

    • brushed-brass-waxed joseph-giles
      Brushed Brass Waxed
    • brushed-nickel joseph-giles
      Brushed Nickel
    • dark-bronze-waxed joseph-giles
      Dark Bronze Waxed
    • mid-antique-brass-waxed joseph-giles
      Mid Antique Brass Waxed
    • polished-brass-waxed joseph-giles
      Polished Brass Waxed
    • polished-chrome joseph-giles
      Polished Chrome
    • polished-nickel joseph-giles
      Polished Nickel
