Joseph Giles - Horizontal privacy latch lock

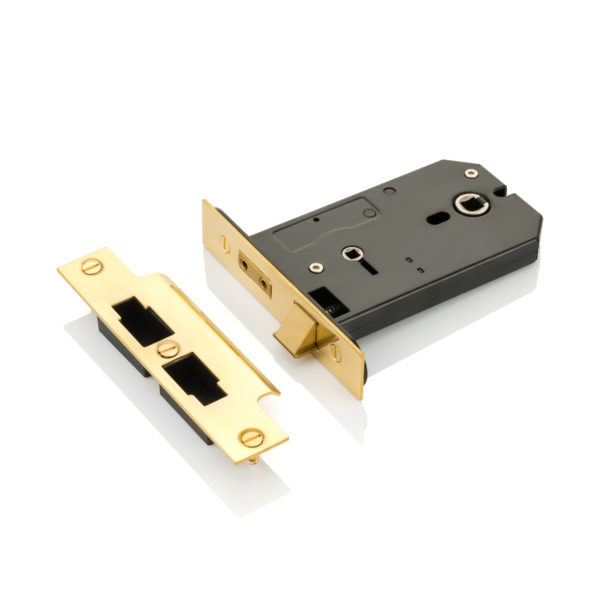

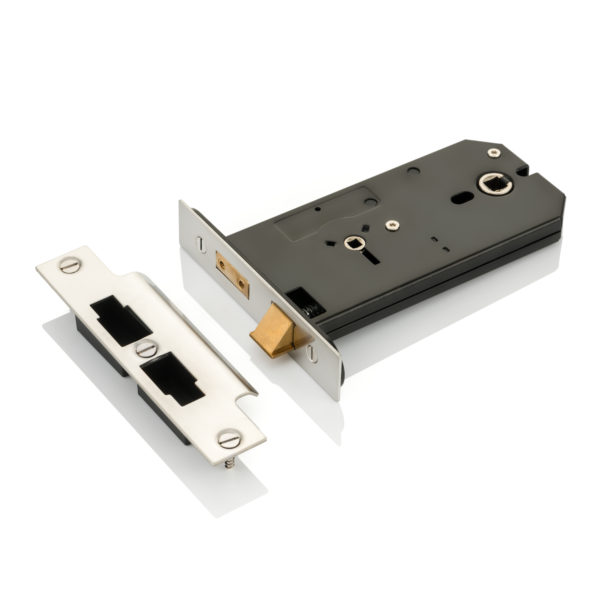

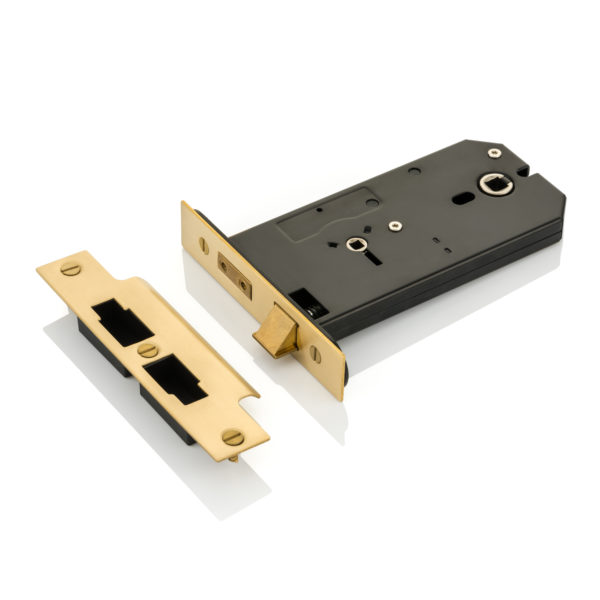

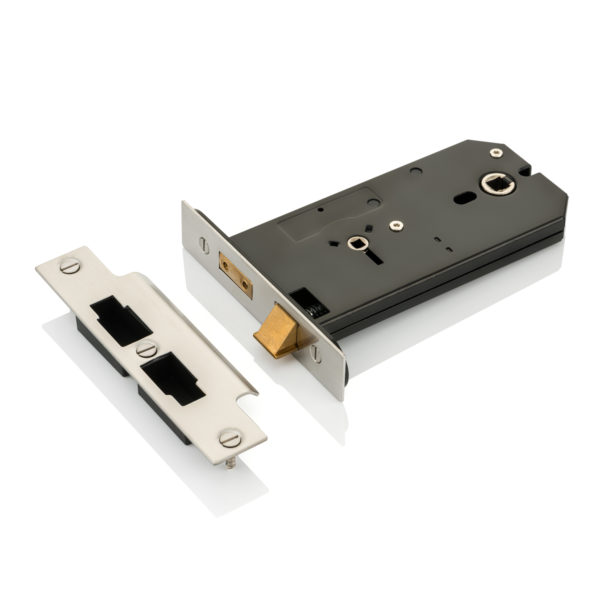

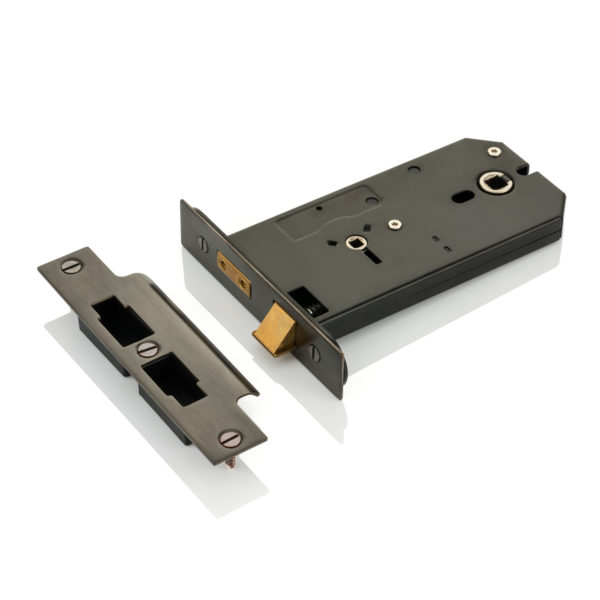

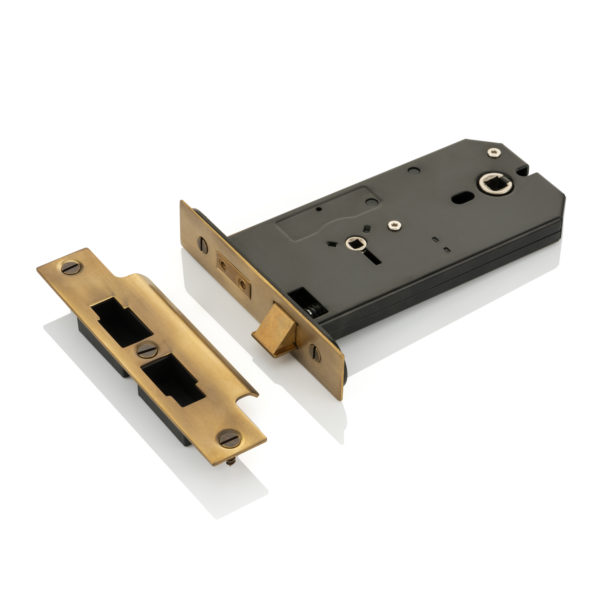

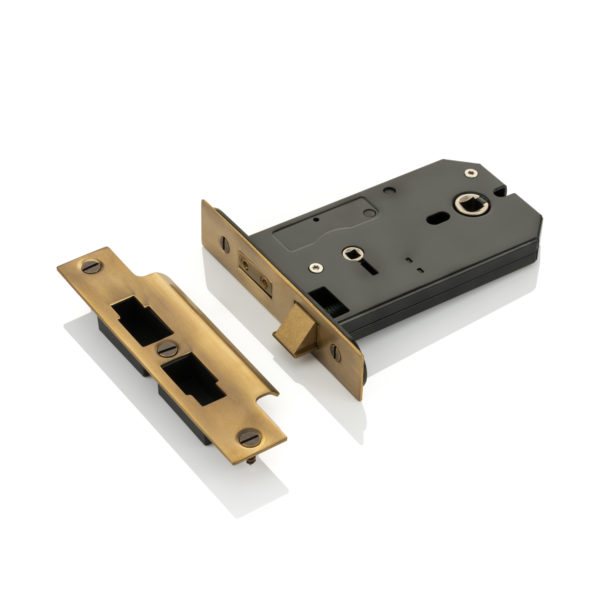

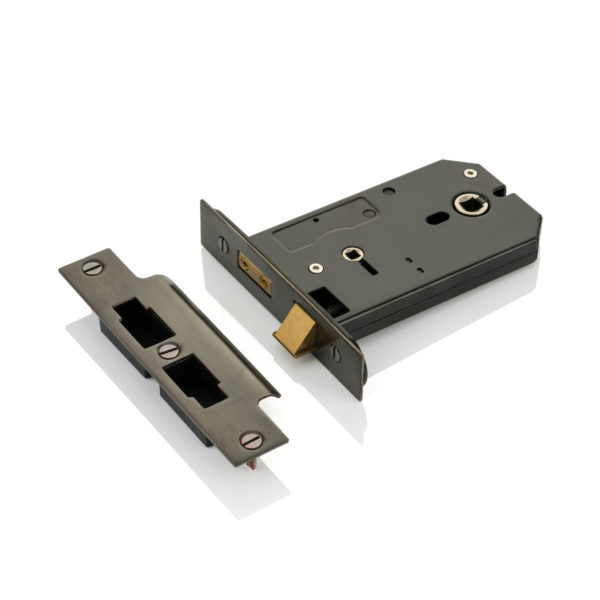

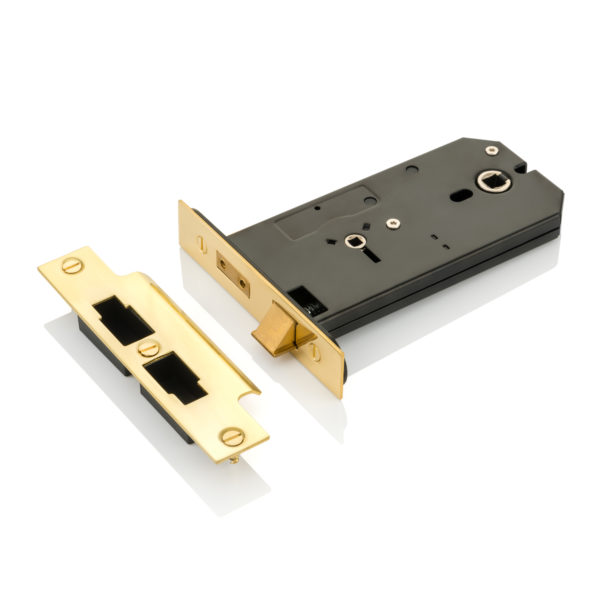

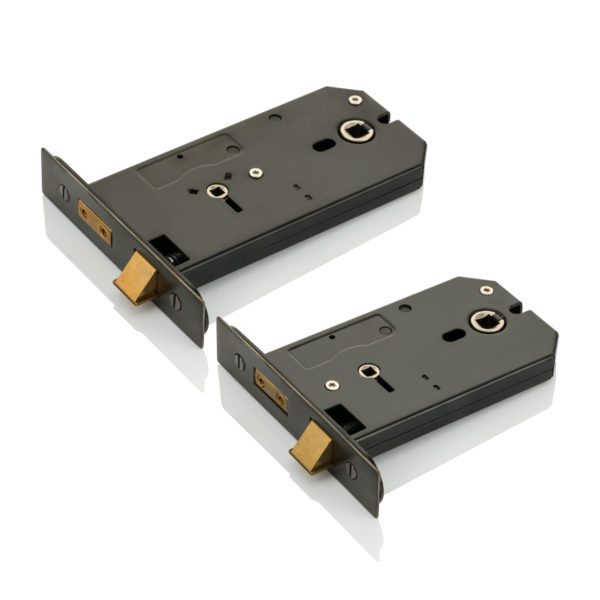

This horizontal privacy latch lock is recessed into the door. The latch bolt is operated by a pair of door knobs with an 8mm spindle, and its deadbolt is operated by a privacy snib from the inside and emergency release from the outside. These locks are usually installed on doors that lead into a bathroom or toilet. The privacy snib and emergency release will need to be compatible with a 5mm square spindle.

Minimum door thickness for these locks is 32mm and the maximum, as standard, is 54mm.

Includes:

• Latch lock (The actual lock)
• Forend (Plate that goes over the end of the lock)
• Strike plate (Plate that is fitted to the frame)
• Dust box (Small black box which is fitted into the cut out behind the strike plate, improving the overall aesthetics of the finish)
• Fixing pack

For up-to-date Dimensions & Technical Help Sheets on this item please visit the Joseph Giles UK website and search LA1041. You will need to create an account to login. Alternatively, contact our helpful sales consultants for assistance.
