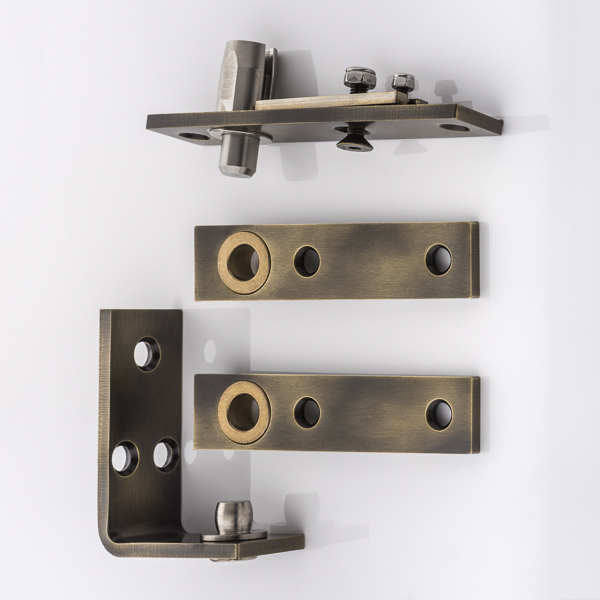

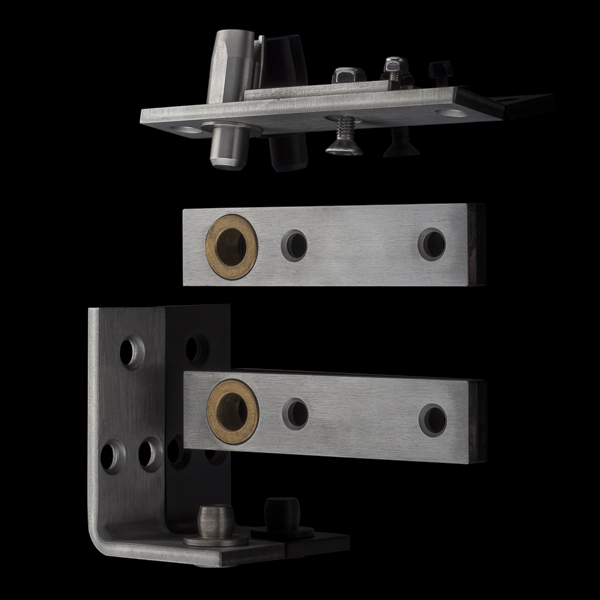

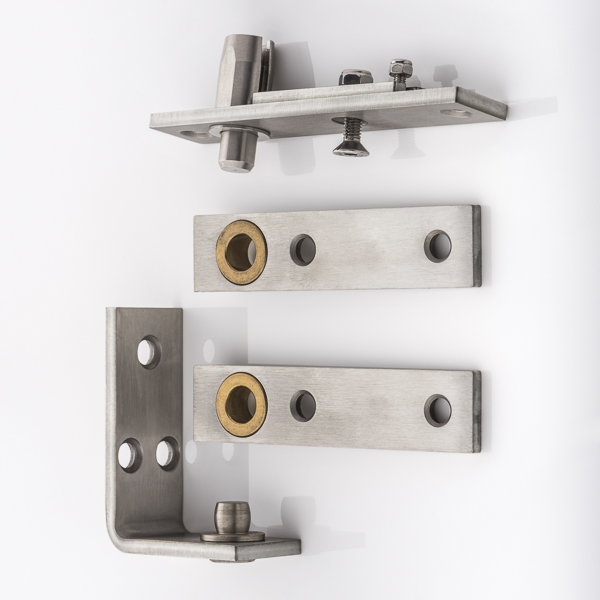

Joseph Giles - Double action wall-mounted door pivot hinge set

Pivots provide an alternative way to swing a door as opposed to a traditional butt hinge. They can provide a more minimalist aesthetic than a traditional hinge and are also very useful for certain specialist applications.

Double action pivots-allow doors to swing in either direction. The top and bottom door plates have maintenance free oil impregnated bronze bearings, suitable for FD30 and FD60 doors, and are approved for use on both single and double doors to BS476, pt22. The lower pivot is frame mounted and has a fixed pivot centre line. This product is suitable for door leaves weighing up to 80kg.

For up-to-date Dimensions & Technical Help Sheets on this item please visit the Joseph Giles UK website and search PV1009. You will need to create an account to login. Alternatively, contact our helpful sales consultants for assistance.

Made to Order: Please note, this product is specially ‘made to order’ for your project. Quantity discounts are available. 100% payment is required for ‘made to order’ items before the order is placed.
