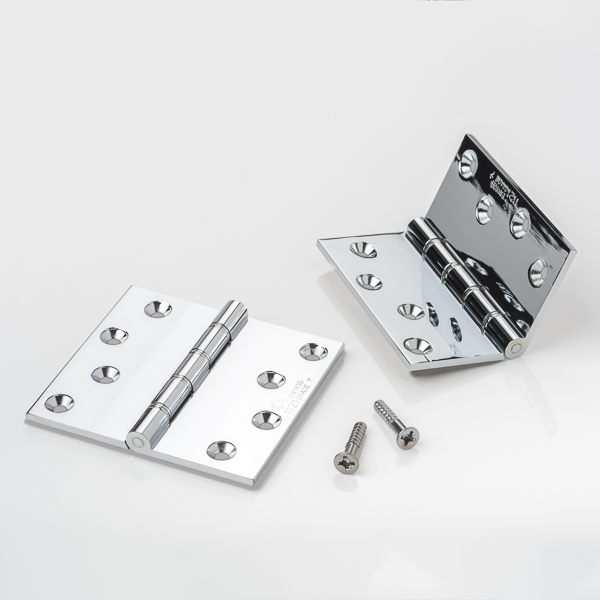

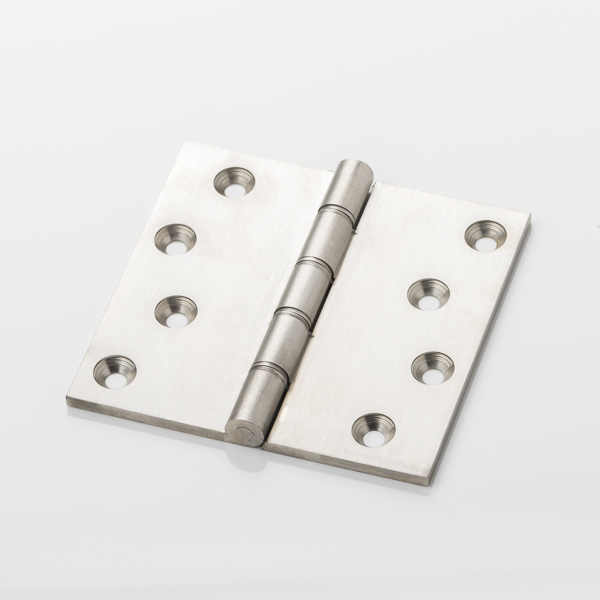

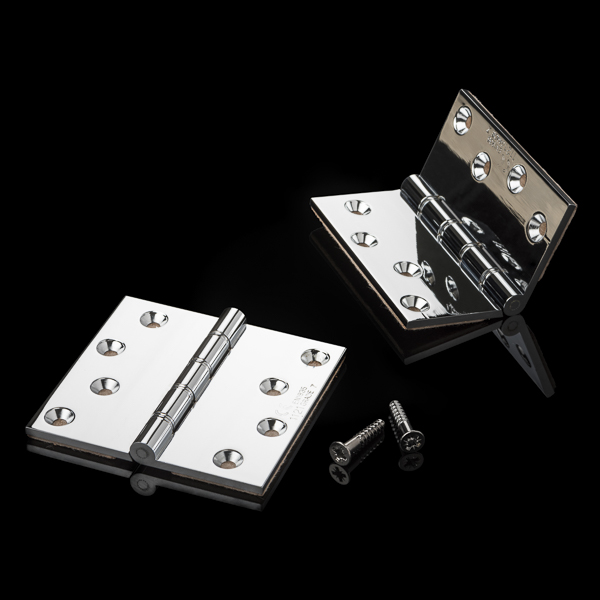

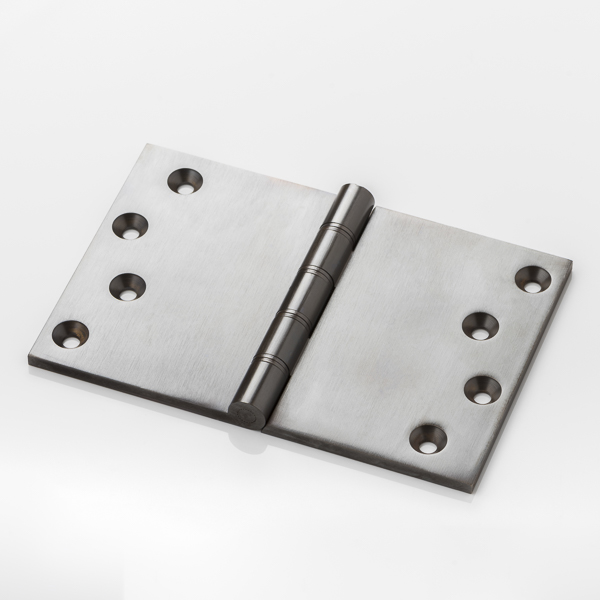

Joseph Giles - Solid brass washered bearing projection butt hinge - non fire rated

This decorative brass butt hinge provides a real sense of quintessentially British craft, they are made using the traditional 'washer' method and utilize the finest grade brass for the hinge leaves and real bronze for the washer bearings and hand-finished.

Decorative brass projection butt hinges, performance guaranteed for 10 years, grade 7 hinges that are suitable for medium to heavy weight doors.

Projection hinges are usually installed on double doors that are required to fold back against a wall.

Tested on a maximum adjusted door weight of 40-80kg depending on the size of the hinges:
HG1011.01 has a load capacity of 40kg (3 hinges).
HG1011.02 has a load capacity of 80kg (3 hinges).
HG1011.03 has a load capacity of 80kg (3 hinges).
HG1011.04 has a load capacity of 80kg (3 hinges).

Supplied as single items with slotted wood screws.

For up-to-date Dimensions & Technical Help Sheets on this item please visit the Joseph Giles UK website and search HG1011. You will need to create an account to login. Alternatively, contact our helpful sales consultants for assistance.
